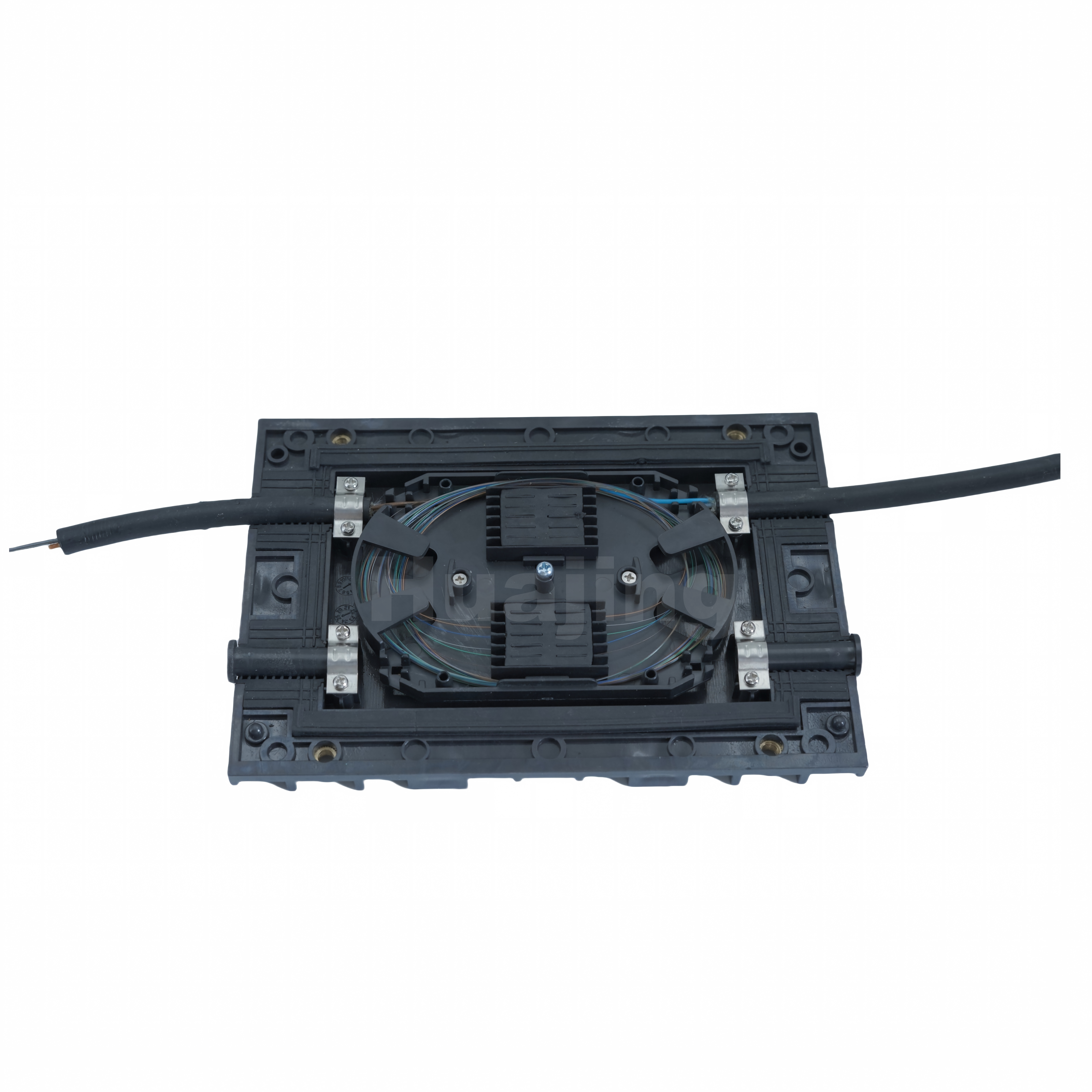

4 Ports Horizontal Fiber Optic Closure With Silicone Rubber Sealing And Multiple Elastic Locks For Secure Optical Cable Connections

Application:

The product can be applied in the straight line and branch line(one into two, one into three)connections of optical cables. It can be laid overhead , in the pipeline, underground or in the well. Meanwhile, it is also applied to the connection of all-plastic city phone cables.

Features:

1. The case body is made from high-intensity engineering plastics(ABS).
2. The box body and the cable inlet are sealed with silicone rubber, the sealing performance is reliable.
3. The metal structural part and fasteners outside the box body are made of stainless steel respectively, which can meet various environments.
4. Configured plugs correspond to the entrance and exit, so that users can make flexible choices
   according to the actual number of fiber optic cables in and out;

5. Use multiple elastic locks to lock the box body, which is convenient for repeated opening and
   maintenance.


Techinical Index:

• Optical fiber winding radius: ≥40mm
• Extra loss of fiber tray:≤0.01dB
• Working temperature: - 40℃ ~ + 65℃
• Lateral pressure-resistance: ≥2000N / 10cm
• Shock-resistance:≥20N.m
• Protection level: IP67

Specification:
